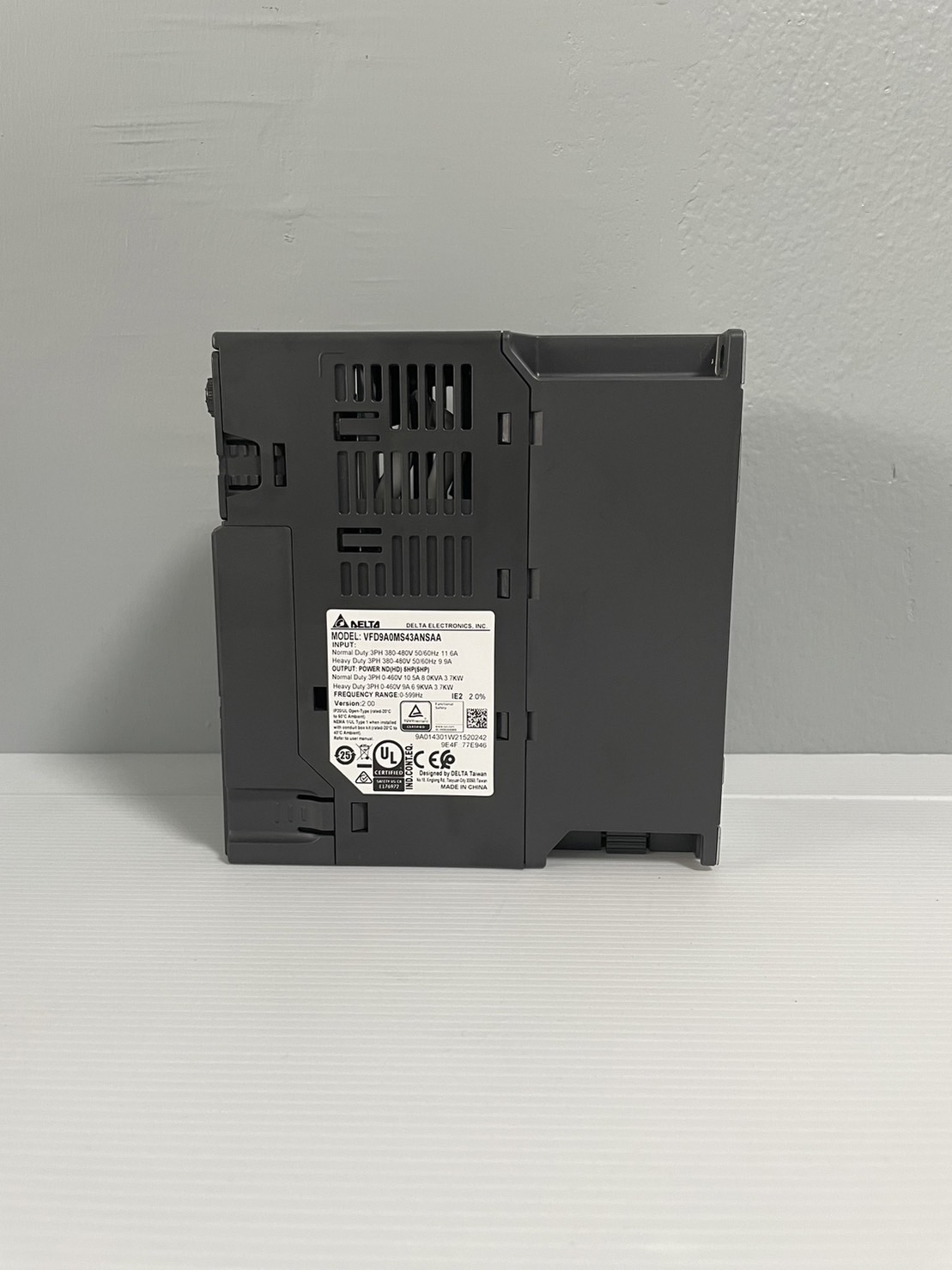

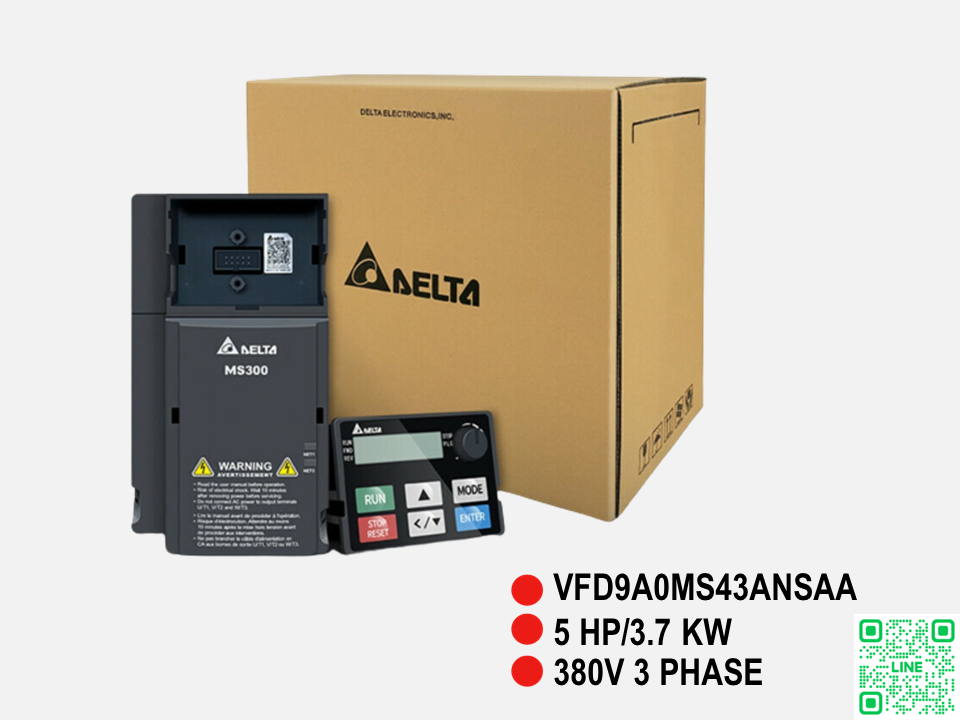

Delta Inverter VFD9A0MS43ANSAA 5HP 3.7/4kW (Input 380V 3-Phase Output 380V 3-Phase )

Delta Inverter Standard Type MS300

Built-in PLC, Various Communication Protocols and Wide Power Range

● Overload capacity up to 150% / 60 secs and 200% / 3 secs for various constant torque loads

● Supports IM / IPM / SPM motors

● Supports Delta's MSI motors for an efficient energy saving system (please refer to p.15)

● High torque at low speed (up to 200% at 0.5 Hz with vector control) for stable operation of heavy-duty equipment

● Integrated PLC function (2k steps)

● Highly safe and reliable with Safe Torque Off (STO) SIL2 / PL d

● Built-in EMC filter (optional)

● Pull-out keypad

● 24 V power supply card (optional) for unexpected shutdown

● USB charging on PC is available for parameter setting and update (no need for power supply from main circuit)

● Built-in Modbus and optional communication cards: CANopen, DeviceNet, EtherNet/IP, EtherCAT, PROFIBUS DP, Modbus TCP, and PROFITNET*

● High-speed model up to 1,500 Hz
